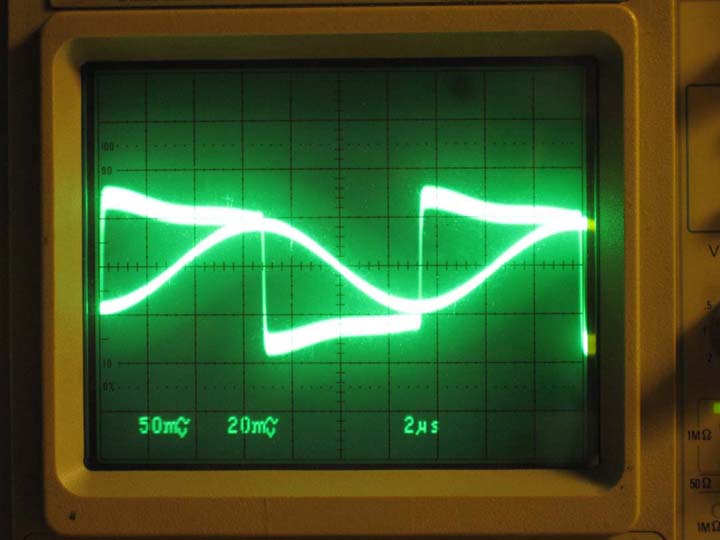

Let's continue our discussion of oscilloscope tracings so we can better understand how the inverter is going to work and lock onto resonance. From the last page I mentioned that voltage across the tank capacitor lags the current by 90 degrees. At resonance, the tank current has a zero phase shift with respect to source (inverter) tank voltage because the inductive and capacitive reactance cancel out. If you display the inverter voltage and capacitor voltage together, you can see the sinusoidal capacitor voltage lags the inverter voltage by 90 degrees. The square wave is the inverter voltage, but you would get the same relationship if you scoped the voltage output of the toroid transformer.

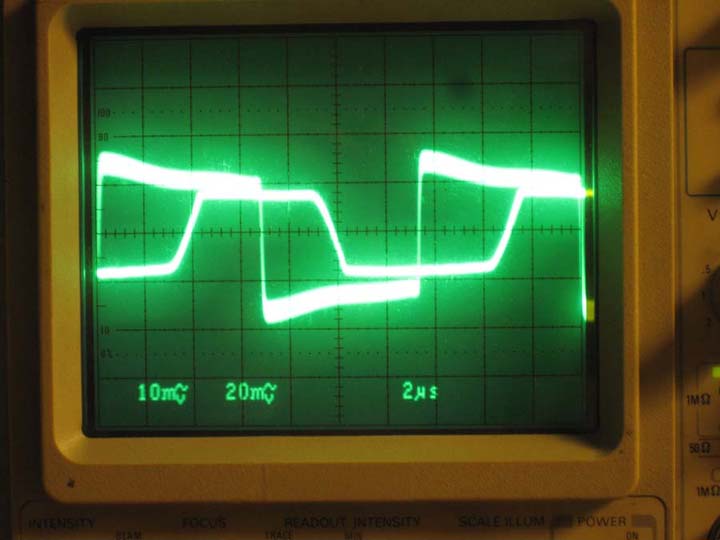

We will monitor this relationship. We are at resonance when our PLL chip keeps Vc ninety degrees lagging behind Vinverter. Now, we can easily exceed the chips maximum input voltage, so we need to clip the top and bottom the the capacitor voltage, and keep it to a maximum of 15v. We do this with some clamping diodes yeilding this waveform, which will be the signalin input on pin 14 of the HEF4046.

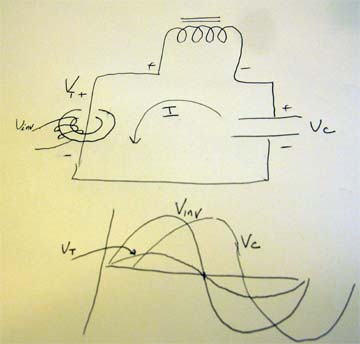

Below is a diagram of the scoped voltages. Using a differential probe, the positive lead goes to the positive inverter lead going to the toroid and the negative to the negative lead. Using a second differential probe we scope the + and - ends of the capacitor tank. Vc will lag Vinv or Vtank. We will have to invert the Vc waveform, that is shift it 180 degrees, in order for the PLL to work, which I will discuss shortly.

Now, we are ready to talk about the phase locked loop chip - the HEF4046. After this discussion, we will have enough information to understand the workings of the inverter and how it maintains a lock on the resonance.
